The Robot Needs a Power Grid

Humanoid robots are often described through batteries, motors, sensors, and AI compute, but these blocks only work when energy reaches them predictably. This chapter argues that internal power distribution must be designed as a robot-wide grid: hierarchical, observable, protected, and capable of bidirectional energy flow. A central battery bus may carry tens of volts, while joints, hands, perception, safety controllers, and compute require different voltage, noise, peak-current, and availability characteristics. Dynamic motion also creates regeneration, voltage sag, fault currents, connector stress, and transient loads that a simple wiring harness cannot manage safely. The semiconductor architecture therefore expands from battery management into zonal power switching, DC/DC conversion, current and voltage sensing, electronic fuses, local diagnostics, coordinated shutdown, and regenerative-energy handling. Treating power as a distributed control system reduces wiring mass, contains faults, improves efficiency, protects sensitive electronics, and gives Physical AI a measurable electrical foundation for reliable motion at scale.

The Missing Architecture Between Battery and Motion

Humanoid robotics discussions often jump from battery capacity directly to motor efficiency, runtime, or charging. That skips the electrical system that sits between energy storage and every physical action. A humanoid contains dozens of actuators, multiple computers, perception sensors, communications, cooling devices, safety controllers, memories, and low-voltage analog circuits. Each load has different requirements for voltage, current, noise, transient behavior, fault tolerance, and availability. The battery is therefore only the source. The robot still needs a robot power grid that makes stored energy usable throughout a moving body.

Historical humanoid designs already demonstrate why this matters. TOCABI used a 48 V motor level while also distributing 24 V, 12 V and 5 V rails for computing, networking, sensing and control [ref-tocabi-2022]. Current humanoid power discussions similarly converge around battery-derived intermediate buses, often around the 48 V class, followed by local conversion for subsystem loads [ref-psemi-powering-dexterity-2026]. The durable point is not one nominal voltage. It is the need for a hierarchy: a high-power backbone, protected branches, local conversion, and load-specific regulation.

Why a Wiring Harness Is Not Enough

A passive harness assumes that the source is stiff, loads are predictable, and faults are rare. Humanoids violate all three assumptions. Whole-body motion can switch large currents between joints in milliseconds. AI compute may change power state abruptly. Contact tasks can stall an actuator. A joint driven externally can regenerate energy into the bus. Connector resistance changes with wear, vibration and service cycles. A short circuit in one limb must not necessarily collapse perception, safety control, communications, or the remaining body.

This is a power integrity problem at robot scale. Voltage sag can reduce available motor torque or trigger undervoltage behavior. Switching transients can disturb sensors or reset controllers. Shared impedance can couple a leg current pulse into a sensitive head rail. Protection that is too slow risks cable or connector damage; protection that is too aggressive produces nuisance shutdowns during valid dynamic peaks.

IEC 60204-1 provides the machinery context for electrical equipment, including overcurrent protection, protective bonding, power-drive-system behavior, emergency-stop interfaces and control-circuit protection [ref-iec-60204-1-2021]. Humanoid robots will not map perfectly onto every industrial-machine assumption, but the standard reinforces a crucial architectural principle: electrical protection, control, and documentation belong to system design, not only component selection.

From Central Distribution to Zonal Power Nodes

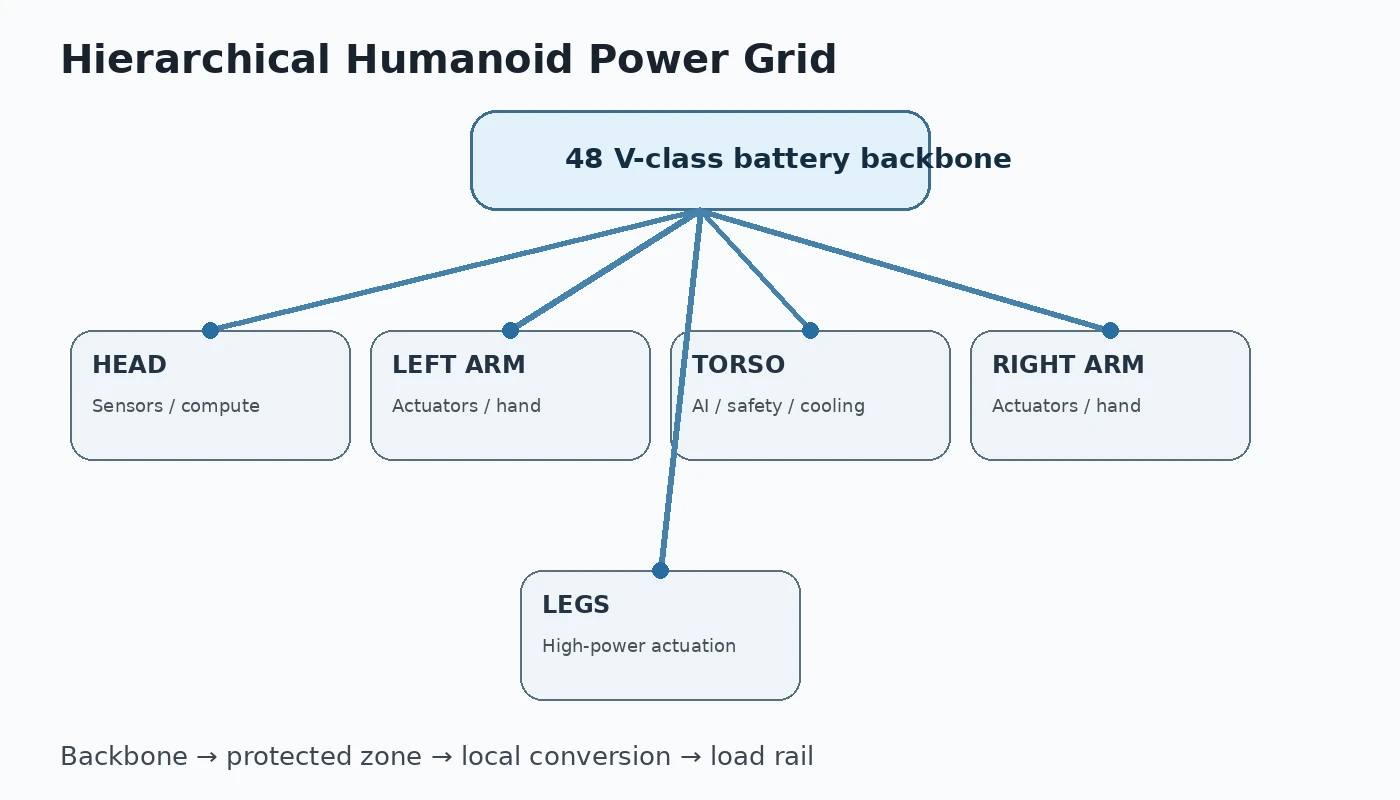

The robot body naturally divides into electrical zones: left leg, right leg, torso, arms, hands, head, battery, and compute. A zonal power distribution architecture places switching, sensing, protection and sometimes conversion near those physical regions. The central bus then carries energy over longer distances while local nodes create controlled electrical boundaries.

Zonalization has several advantages. Higher distribution voltage reduces current for a given transferred power and can reduce conductor cross-section. Shorter low-voltage branches reduce voltage drop and radiated loop area. Local current measurement makes branch behavior observable. Faults can be disconnected closer to their origin. Service diagnostics become more specific because the robot knows which zone exceeded current, lost supply, or accumulated abnormal resistance.

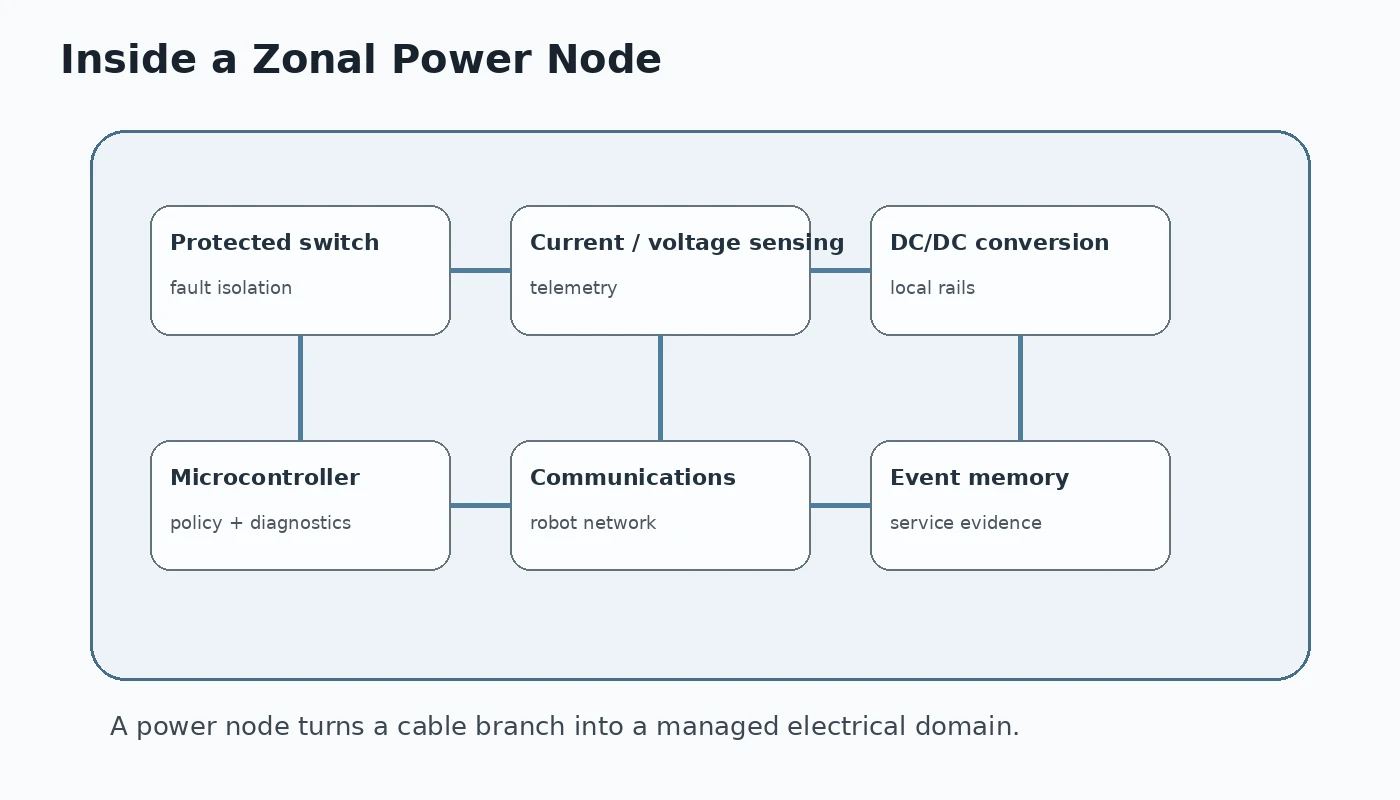

Infineon’s current humanoid application architecture explicitly spans motor control, battery management, power distribution, sensing, compute interfaces, connectivity, memory and security [ref-ifx-humanoid-2026]. The system implication is that semiconductor value increasingly appears at boundaries between these domains. A zonal node may combine a microcontroller, current and voltage sensing, high-side or low-side power switching, DC/DC conversion, communications, diagnostics and nonvolatile fault history.

Protection Must Understand Dynamic Loads

Traditional fuses are excellent irreversible safety devices, but humanoid robots also need controllable branch protection. An electronic fuse or semiconductor protection stage can measure current, enforce configurable limits, disconnect a branch, retry under defined conditions, and report the event. The protection policy can distinguish a valid acceleration pulse from a sustained stall, or a temporary peripheral overload from a hard short.

This does not mean software should replace deterministic protection. Fast hardware thresholds, thermal limits, watchdog behavior, and safe disconnect paths remain necessary. The opportunity is layered protection: nanosecond-to-microsecond device protection, microsecond-to-millisecond branch protection, and millisecond-to-second supervisory energy management. Safety requirements such as ISO 10218-1:2025 reinforce the need for inherent risk reduction and predictable protective behavior in industrial robot design [ref-iso-10218-1-2025].

Layer	Typical responsibility	Semiconductor functions	Robot-level value
Device	Protect switch or converter	Overcurrent, overtemperature, gate protection	Prevents local semiconductor destruction
Branch	Protect cable, connector and zone	Current sensing, electronic fuse, protected switch	Contains limb or subsystem faults
Zone	Manage local voltage and health	MCU, ADC, DC/DC, telemetry, nonvolatile logging	Preserves observability and controlled degradation
Robot	Coordinate total energy and shutdown	BMS, safety controller, communications	Maintains safe, mission-aware power state

Regeneration Changes the Direction of Power Flow

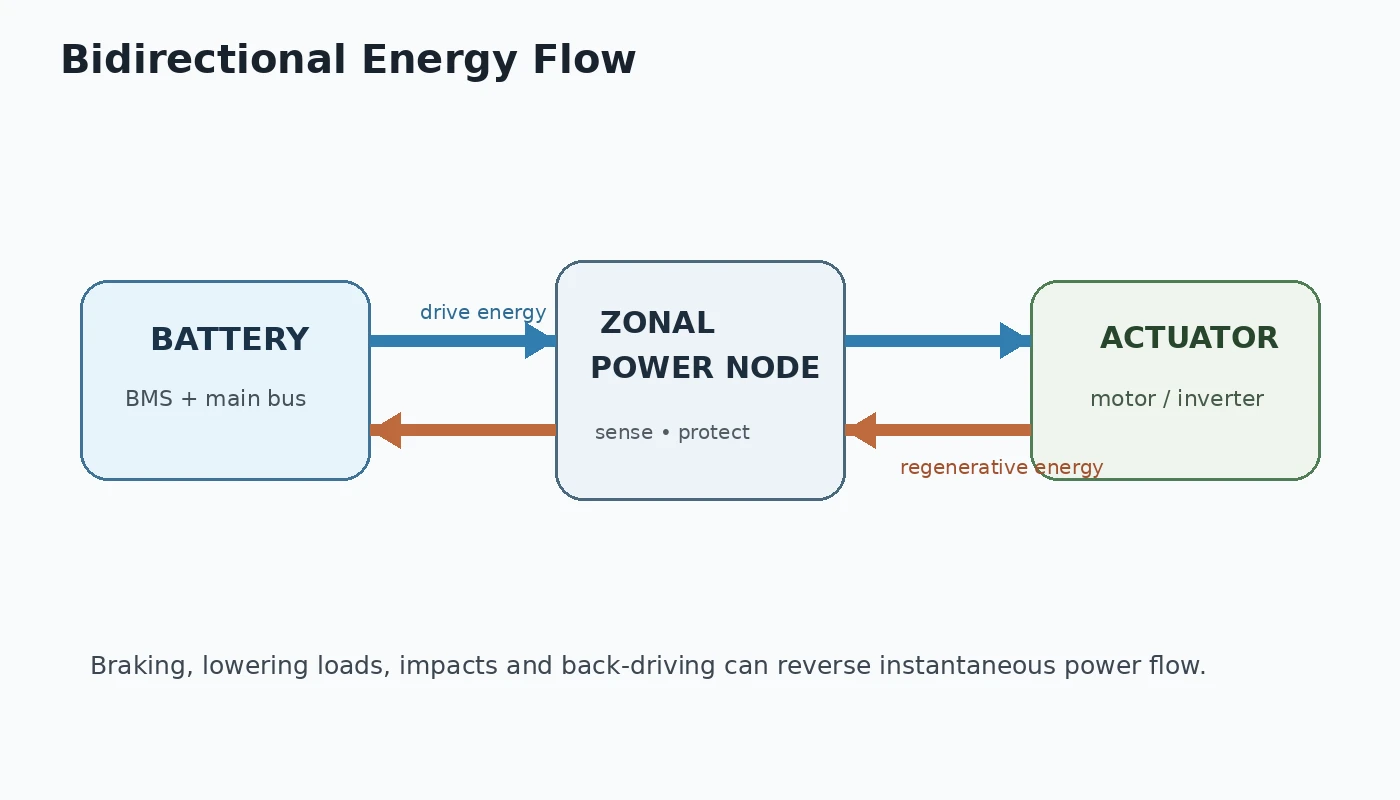

Humanoid actuators do not only consume energy. When a joint decelerates, lowers a load, absorbs impact, or is back-driven by the environment, the motor can operate as a generator. That creates regenerative energy flowing back toward the DC bus. Research on electrical power consumption in a Unitree G1 arm explicitly observes negative net-power trajectories under some motions, demonstrating that energy flow cannot always be modeled as one-way consumption [ref-power-model-g1-2026].

Regeneration is beneficial only if the architecture has somewhere safe to put the energy. A battery may accept it within state-of-charge, temperature and current limits. Other active loads may consume it. A converter may redirect it. In unfavorable conditions the DC bus can rise, forcing clamping, braking, or motion-control intervention. The power grid therefore needs bidirectional awareness: not just how much current leaves the battery, but where energy is moving and whether the receiving domain can absorb it.

The Battery Management System Is Necessary but Not Sufficient

The battery management system remains the electrical authority at the pack. It measures cell voltage and temperature, estimates state, controls charge and discharge protection, and communicates battery capability. Infineon’s mobile-robot platform uses the TLE9012DQU battery monitoring and balancing IC in a 12-series-cell architecture and demonstrates a 44.4 V nominal system with hot-swappable batteries [ref-ifx-imr-bms-2025] [ref-ifx-tle9012dqu]. Renesas similarly frames humanoid battery management around cell monitoring, balancing, protection, pack current and voltage measurement, communications, auxiliary power, and thermal supervision [ref-renesas-humanoid-bms-2026].

But the BMS cannot see every downstream connector, cable, DC/DC converter, or actuator branch with sufficient resolution. Pack current may look normal while one arm connector develops resistance and local heating. A transient fault can disappear before the central controller identifies its origin. This is why battery intelligence and distribution intelligence should be separated but coordinated. The BMS protects the energy source; zonal power nodes protect and observe how that energy is used.

Power Telemetry Becomes a Sensor for Physical AI

Electrical measurements are not only protection signals. They are also information about physical behavior. Motor current relates to electromagnetic torque. Converter temperature reveals sustained loading. Bus sag reveals source impedance. Repeated current spikes can expose mechanical friction, cable damage, poor tuning, or task changes. Branch energy measurements can estimate the actual electrical cost of a mission profile.

This creates a powerful cross-layer feedback loop. Motion planning can account for energy. Maintenance systems can correlate rising branch resistance with service history. Safety logic can combine electrical faults with joint-state information. Fleet analytics can compare energy signatures across robots. A power grid that is instrumented at useful points becomes part of the robot’s sensing architecture.

Semiconductor Architecture: From Components to Power Nodes

The central semiconductor opportunity is not one “robot power chip.” It is a set of coordinated building blocks spanning power semiconductors, gate drivers, protected switches, current and voltage sensors, battery-monitoring ICs, DC/DC converters, microcontrollers, communication transceivers, isolation where required, security, and memory. The strongest architecture exposes enough telemetry to support diagnostics without adding prohibitive cost, wiring, or software complexity.

Power-grid function	Required behavior	System-defining semiconductor layer
Battery authority	Cell supervision, SoC/SoH, charge/discharge protection	Battery monitoring ICs, MCU, current sensing, isolation
Main bus switching	Inrush control, disconnect, fault isolation	Power MOSFETs, gate drivers, protected switches, current sensing
Zonal distribution	Local branch control and telemetry	MCU, electronic fuse, ADC, transceiver, NVM
Local conversion	Efficient creation of 24 V, 12 V, 5 V and point-of-load rails	DC/DC controllers, integrated regulators, GaN/Si MOSFETs where beneficial
Actuator interface	High peak current, regeneration, fast protection	Three-phase inverter, gate driver, current sensing, motor-control MCU
Low-noise sensing	Stable rails isolated from power transients	Low-noise regulators, filters, supervisors, precision references

Design Rules for a Scalable Humanoid Power Grid

First, select the distribution voltage from whole-robot tradeoffs rather than motor convenience alone. Higher voltage can reduce current and copper mass, but raises device-voltage requirements, insulation demands, switching constraints and fault energy. Second, segment the body into power zones that match mechanical modules and service boundaries. Third, make high-current branches observable. A current path that cannot report its condition is difficult to diagnose at fleet scale.

Fourth, separate electrical availability classes. Safety control and essential communications may need to survive faults that legitimately disable a hand, joint group, perception accelerator, or cooling load. Fifth, treat regeneration explicitly in the energy budget and overvoltage strategy. Sixth, coordinate power sequencing. A robot should not rely on every load booting simultaneously after battery connection or swap. Finally, log power faults with enough temporal context to reconstruct what happened before a shutdown.

What Changes Over the Next Five Years

As humanoids move from demonstrations toward larger fleets, internal power architecture will become more standardized and more software-visible. Wiring mass and assembly cost will pressure designers toward modular buses and zonal electronics. Higher actuator power density will increase transient and regeneration challenges. Hot-swappable or automatically exchanged batteries will make controlled sequencing and isolation more important. Energy-aware planning will require better power telemetry. Fleet service will require electrical health history instead of a simple “battery percentage” metric.

The resulting shift mirrors changes already seen in vehicles and industrial automation: value moves from isolated conversion components toward managed power domains with diagnostics, communication and safety behavior. Humanoid robots add an unusual constraint: the grid itself bends, accelerates, experiences impacts, and must fit inside a body optimized for motion.

Conclusion: Intelligence Needs an Electrical Backbone

A humanoid robot cannot be reduced to a battery connected to motors. It is a distributed electrical machine whose physical intelligence depends on stable, protected and observable energy delivery. The architecture must route power efficiently, isolate faults, preserve critical rails, handle regeneration, expose health information, and scale across modular limbs and future compute loads.

That makes the robot power grid a semiconductor-defined system problem. Power devices determine efficiency and fault energy. Sensors determine observability. controllers determine local policy. Communications connect zones. Battery-monitoring ICs protect the source. Memory preserves evidence. Together they create an electrical backbone that knows where energy is going, whether the path remains healthy, and how the robot should respond when conditions change. For Physical AI, every watt is both energy and information.
